A semi-circular mandrel is only as good as the fixture that holds it, so this hub collects the drawing callouts, datum choice and tolerance stack that set the price of precision cnc machining parts, plus what to confirm before a shop runs cnc precision machining parts across repeat batches.
Read this right to left. Each row begins with the symptom you already pay for on the floor and ends with the fixture characteristic that addresses it on the semi-circular mandrel.
| Failure mode | What it costs you | Design response | Operational benefit |
|---|---|---|---|
| Part deformation | Scrap, rework and repeated re-clamping on semi-cylindrical workpieces | Stable clamping mechanism combined with precise contour alignment that follows the curved workpiece | Reduced part deformation |
| Vibration & displacement | Chatter marks, interrupted cuts and geometry that drifts mid-operation | Stable clamping mechanism described as reducing vibration and displacement | Consistent accuracy across the machining operation |
| Tool wear | Shortened edge life and extra tool changes inside the run | Surface treatment options that contribute to durability and improved wear resistance | Fewer interruptions and less consumable spend |
| Setup variation | First-off scrap and shift-to-shift drift between operators | Modular adaptability plus precise contour alignment to the workpiece | Reduced setup variations |
| Cycle time & material waste | Higher cost per part and excess stock consumption | Secure holding of semi-cylindrical workpieces so controlled geometry can be machined in fewer passes | Reduced cycle times and material waste, contributing to improved overall ROI |
The fixture is described on its product page as a critical tooling fixture for holding semi-cylindrical parts during different machining operations, and as able to hold them precisely enough to support machining at micron-level accuracy. No numeric tolerance, grade or hardness figures are published against these rows.
A single-purpose tooling fixture for semi-cylindrical workpieces, built to drawing and quoted as a custom part rather than sold from a fixed catalogue.
Match your situation on the left to the parameters that decide the quote in the middle. The right-hand column is what those parameters buy you in operation.
The flow is inquiry-based: there is no cart and no fixed list price. You send the geometry and the operating requirements, and the response comes back as a machined part quoted to those inputs. That is also the route for OEM/ODM work and bulk orders where quantities change between prototype and production.
Share the drawing or key requirements. Upload the file directly with your enquiry so the geometry is read from the source, not re-described.
Material, dimensions, tolerance, surface treatment and quantity — these are the inputs the semi-circular mandrel is quoted against, and the same set applies across the range.
Tell us the workpiece, the machine and the operation. This is where contour alignment, clamping method and any integration support get agreed.
Custom parts pricing comes back against your stated parameters, with customization available on dimensions, materials, tolerance, surface treatment and quantity.
Keep adjacent product options together for a faster catalog comparison.

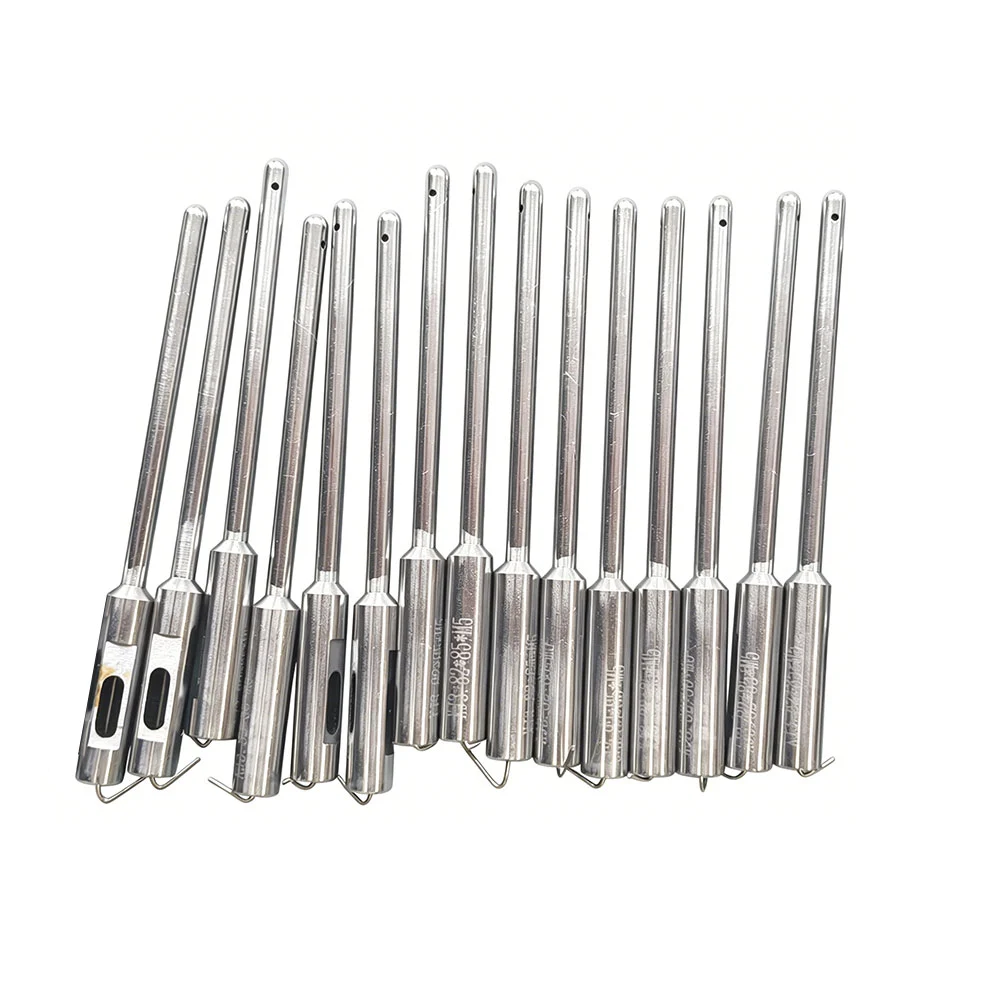

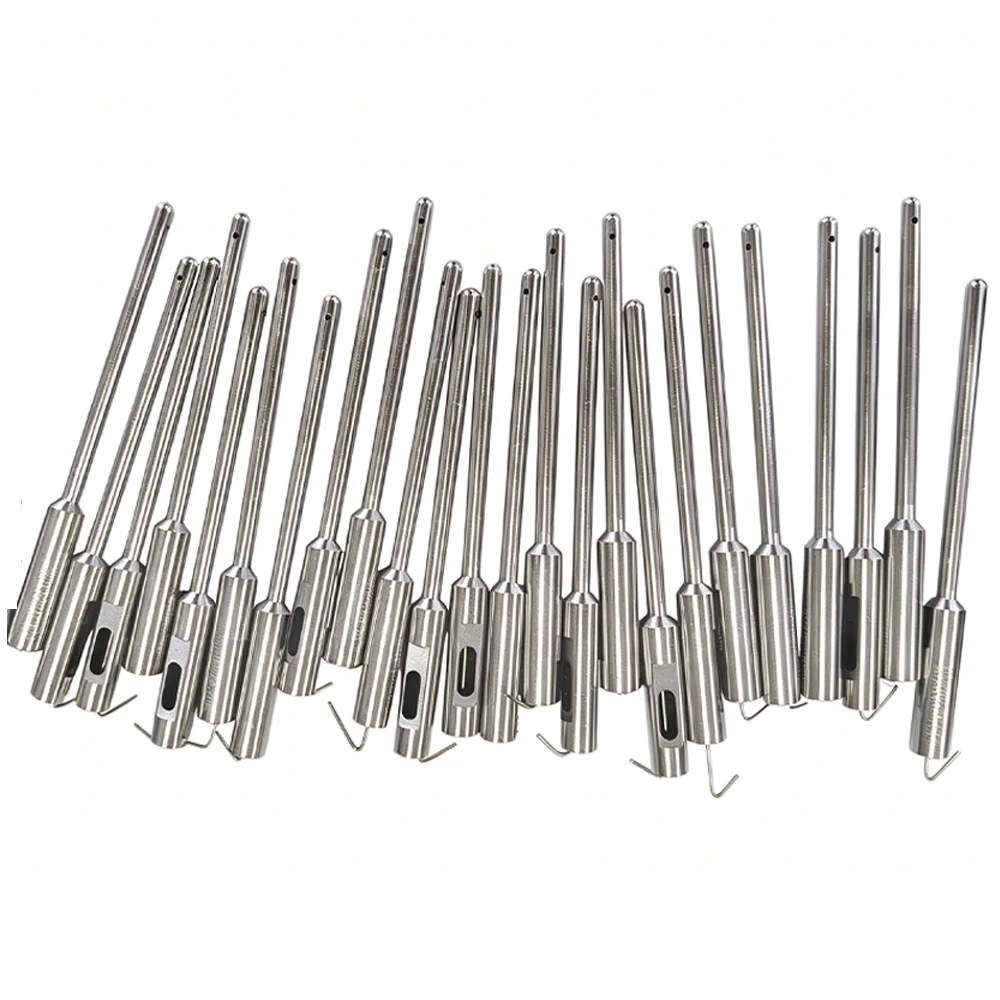

it is a tooling fixture designed to hold semi-cylindrical parts securely during different machining operations, so the workpiece stays supported and aligned while features are cut.

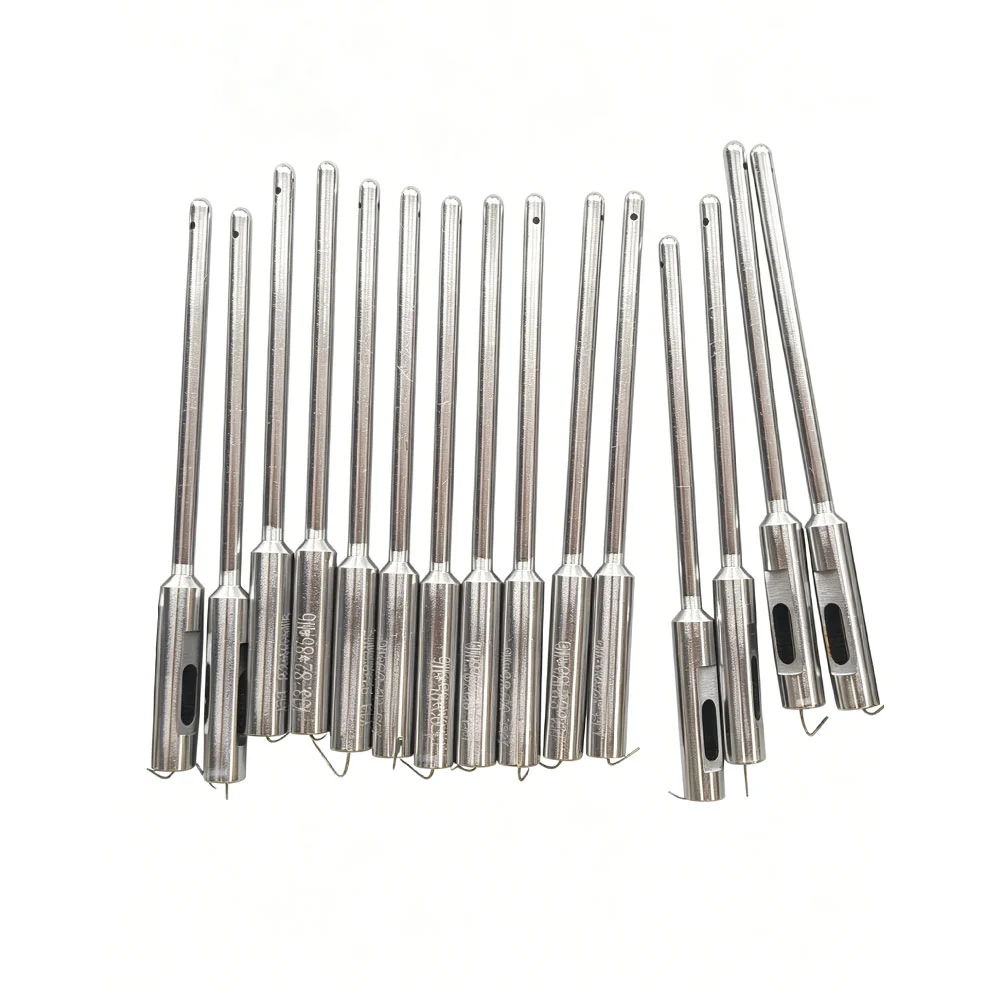

yes. dimensions, materials, tolerance, surface treatment and quantity are all customisable, so the mandrel is machined to your project requirements rather than selected from a fixed list.
no. dimensions and tolerances are presented as customisable capabilities rather than published numeric ranges, which is why the quote form asks for material, dimensions, tolerance, quantity and surface treatment.
the stable clamping mechanism is described as reducing vibration and displacement, while modular adaptability and precise contour alignment keep support consistent along semi-cylindrical contours. the page also states the design reduces part deformation and tool wear, setup variations, cycle times and material waste.
manufacturing follows rigorous quality control inspections compliant with international standards, and surface treatment options are available where durability and wear resistance matter.
yes. technical assistance is offered for integrating the mandrel into existing cnc machining or mold manufacturing processes. share the machine, spindle interface and current workholding with your enquiry.
