Precision Stamping
Focus on repeat contact, geometry stability and how the punch works with the die, stripper, guide and press motion. The useful brief names the workpiece and the feature to be formed or pierced.
Custom tooling for repeated contact
Shape the Punch Around the Tooling Job

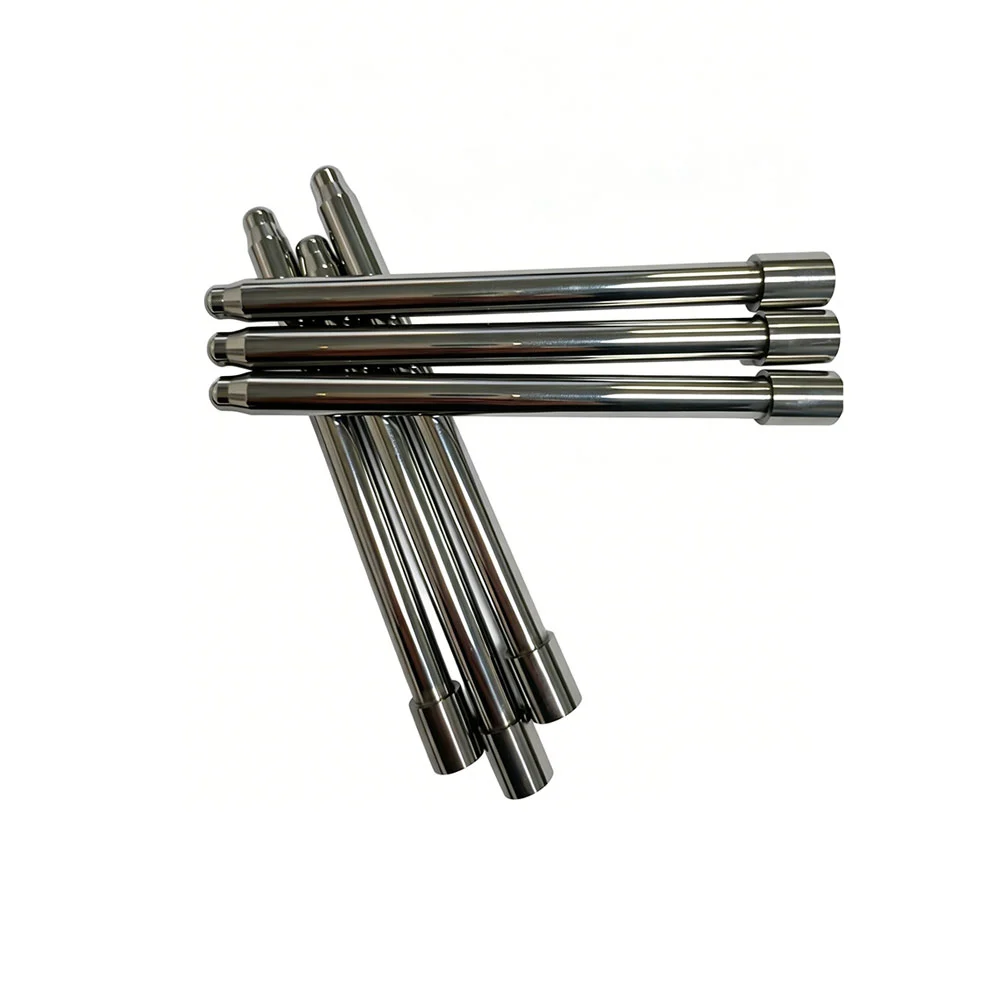

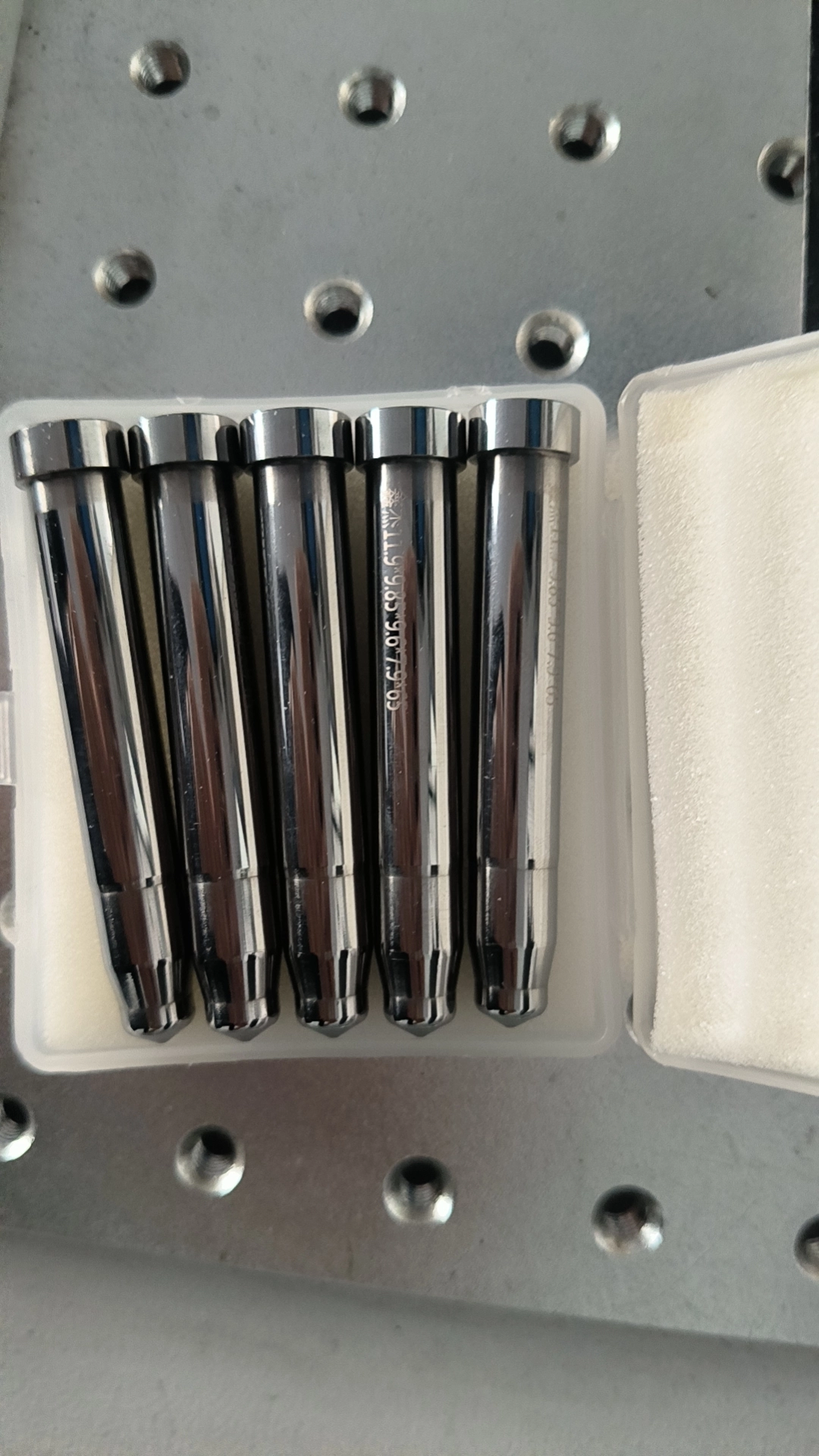

A precision punch has to fit the workpiece, die set and production rhythm around it. This custom tungsten carbide punch is presented by a tungsten carbide punch manufacturer for high-precision punching, forming and tooling requirements.
HardnessResist deformation at the working contact
Wear resistanceSupport repeated tooling contact
Drawing-ledDimensions and tolerances follow the job
From drawing to working contact
Start With the Features That Define Fit
Jinwo's product and service pages connect the punch to custom machining, tooling interfaces and the information needed for a useful quotation.
The punch is a tooling component rather than a standalone promise: geometry, mating parts and operating conditions all shape the final fit.
| Tooling role | Punching, forming, locating or other repeated-contact work inside a tooling setup. | See the product |
|---|---|---|
| Material focus | Tungsten carbide is associated with hardness, abrasion resistance, wear resistance and high compressive strength. | Do not treat the material name as a complete grade sheet. |
| Geometry inputs | Dimensions, tip or shoulder features, locating surfaces and other drawing-defined relationships. | Share the drawing or sample details. |
| Process inputs | Tolerance, surface treatment, quantity, workpiece and production stage affect the quotation conversation. | Prepare an inquiry |
| Production stage | Customized, pilot and mass production are listed as available service stages. | Choose the stage that matches the tooling program. |
Application logic
Three Jobs, Three Different Fit Questions
The punch works inside a system. The right questions change with the production role around it.
Mold Making and Forming
Start with the mating component, locating surfaces and the material behavior around the forming operation. Replacement or custom components should be tied to a drawing or sample rather than a generic punch label.
Automated Production Lines
Discuss production rhythm, alignment, maintenance access and the cost of interruption. A carbide punch can support a demanding line, but actual fit still depends on the complete tooling and press conditions.
Quotation preparation
Give Engineering Enough to Work With
A clearer handoff reduces the gap between a product name and a manufacturable tooling component.
Drawing or sample
Share the geometry, mating context and any sample measurements that show how the component fits the existing setup.
Dimensions and tolerance
Separate nominal size from the acceptable variation around each critical feature. Locating and contact surfaces may need different attention.
Surface treatment
State whether the project needs a particular surface finish or treatment so the conversation does not stop at the base material.
Quantity and production stage
Identify prototype, pilot or mass-production intent and the quantity required for the current phase.
Related tooling routes
Compare Other Tungsten Carbide Components
These official Jinwo products help separate a punch requirement from neighboring carbide tooling roles.
Profile change
Tungsten Carbide Square Punch
Compare this route when the working profile is square or the drawing calls for a different punch geometry.
View square punch
Diameter reduction

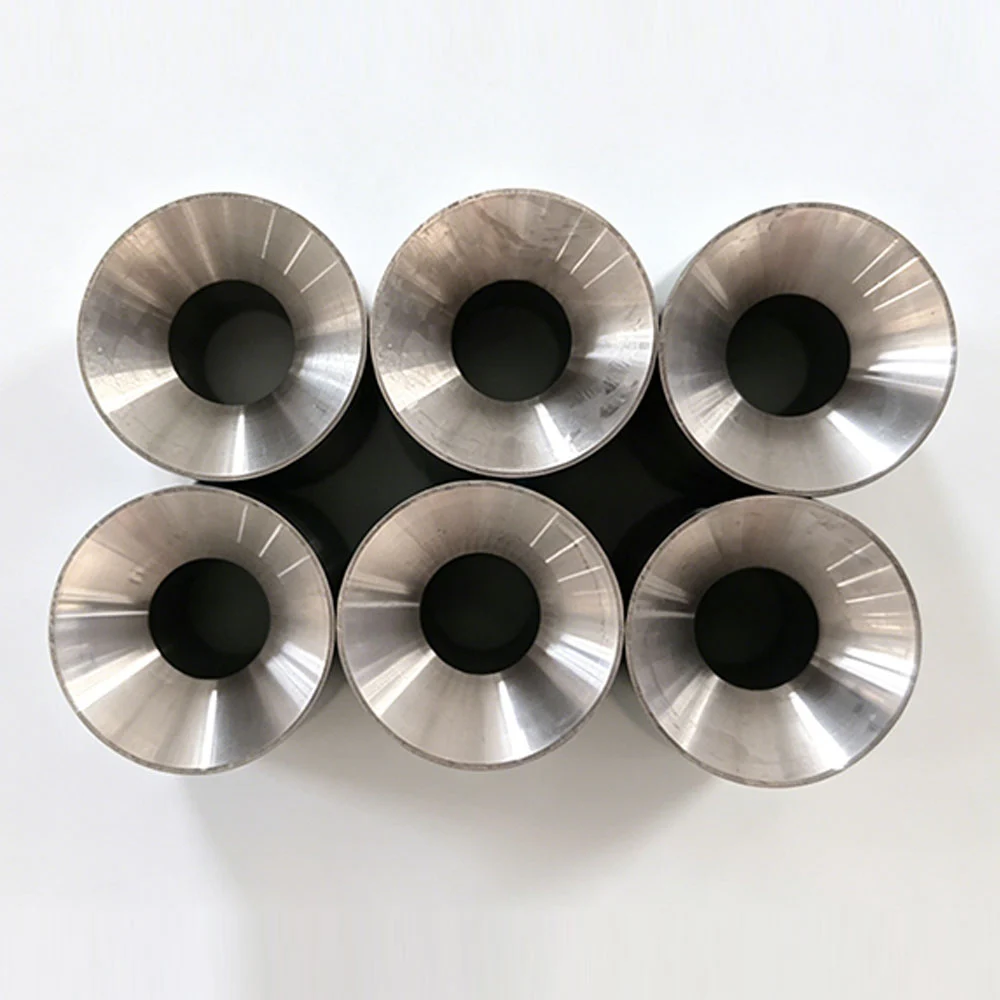

Tungsten Carbide Necking Die
Consider a die route when the tooling job reduces the diameter of tubular or cylindrical components.
View necking die
Internal support

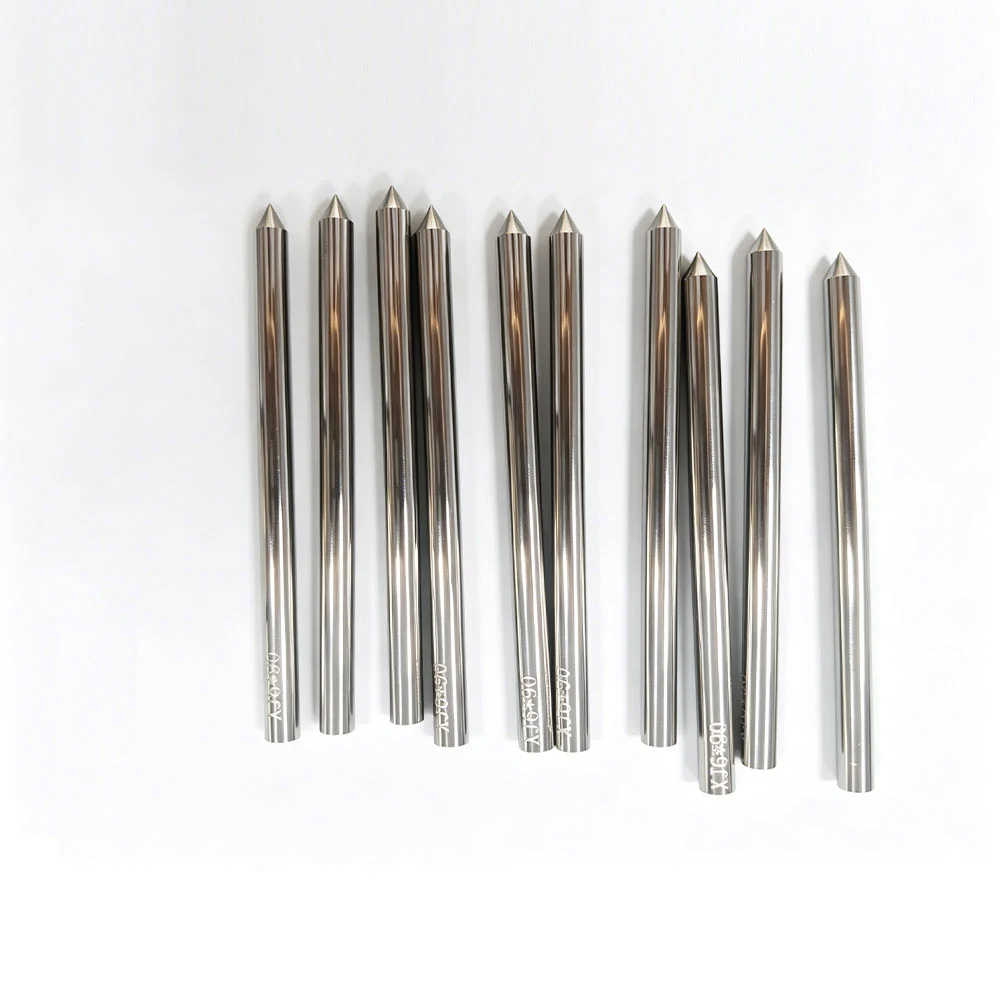

Tungsten Carbide Mandrel
Use this comparison when the part supports an internal form, guide or mandrel function rather than a punching stroke.
View mandrelRelated reading
Clarify the Questions Behind the Part
These three Jinwo articles are text-led because the target product has only two usable product images; each one adds a different decision layer.
Application
Custom Punches for Stamping and Mold Making
Map precision stamping, mold making, metalworking and automated lines to the tooling conditions that shape fit.
Read the application articleSpecification
Dimensions, Tolerance and Surface Finish
Separate size, acceptable variation, surface finish and quality-control language before sending a drawing.
Read the specification articleMaterial behavior
Tungsten Carbide Properties Behind Wear Resistance
Understand how hardness, abrasion, wear, compressive strength and operating conditions work together.
Read the material articleQuestions before inquiry
Tungsten Carbide Punch FAQ
What is a tungsten carbide punch?
A tungsten carbide punch is a precision tooling component for repeated punching, forming or related industrial operations where hardness, wear resistance and dimensional consistency matter.
What information should I share for a custom punch?
Share a drawing or sample details together with dimensions, tolerance, quantity, surface treatment and the tooling or production context.
Where can a tungsten carbide punch be used?
The product is presented for precision stamping, sheet metal forming, mold making, metalworking and automated manufacturing lines.
Which material properties are highlighted?
The product information highlights hardness, abrasion resistance, wear resistance, high compressive strength and resistance to deformation under cyclic loads.
Can the supplier support pilot and mass production?
Jinwo describes customized, pilot and mass production as available production stages for its precision parts service.
Can the punch be made through custom CNC machining?
Yes. The supplier presents custom CNC machining for dimensions, tolerances and surface treatments that follow the project requirements.
